innoCon 6800T-1 High-range online turbidity analyser

Parameters

Turbidity: 0-4000 NTU

 Applications: sewage/wastewater treatment, surface water, tap water

Features

90° scattered light principle in accordance with ISO 7027
Choice of different sensor types to suit different ranges of turbidity measurement
Wide power input, touch screen design
Large backlit LCD display showing measured values, temperature and relay status
Chinese/English menu for easy operation
Password protection to prevent unauthorised operation
New calibration step prompts to help reduce operational errors
2 x programmable Hi/Lo relay outputs
Programmable auto-purge relay outputs
2 x isolated 4-20mA outputs
RS485 Modbus RTU communication
Data storage capability with USB stick export support

Features

CONTROLLER

Display: 4.3" colour LCD touch screen display
Language:Chinese/English
Password: Setting mode:0022,Calibration mode:0011
Power supply:110-240VAC,50/60Hz.
Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
Current output 2: isolated 4-20mA output, settable measurement value, max. load 500Ω
Digital communication: RS485 Modbus RTU
Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
Purging relay: 5A/250VAC/30VDC
Cleaning interval:0.1-1000h,cleaning time:1-1000s
Operating temperature:0~70.0°C
Storage temperature:-20~70.0°C
Protection level:IP65
Mounting: Wall mounted
Dimensions:200 x 180 x 90mm
Weight:ca. 1Kg

SENSOR

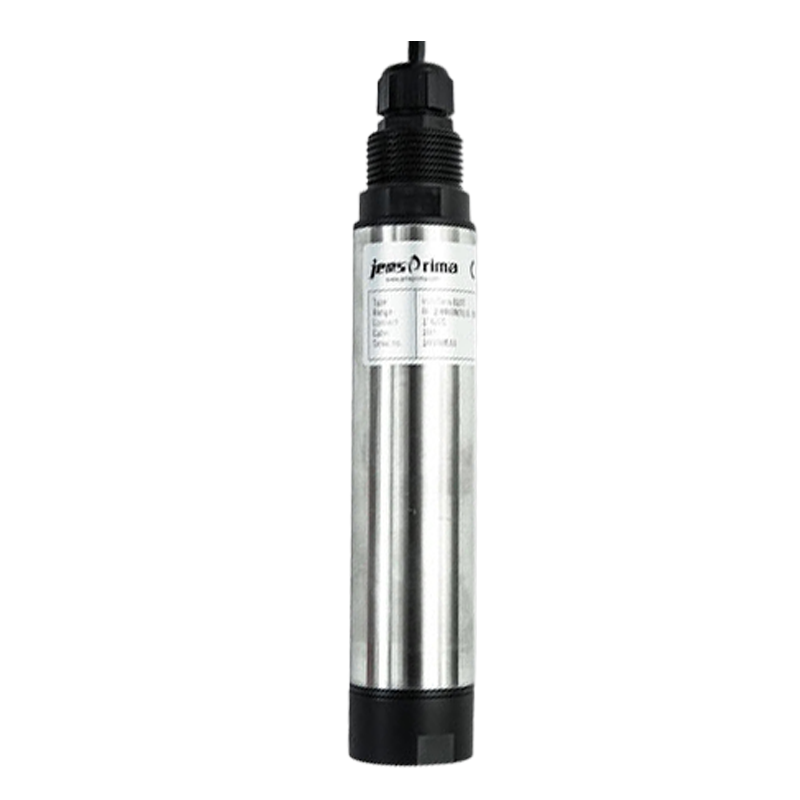

innoSens 810T high range turbidity sensor
The InnoSens 810T high range turbidity sensor uses the 90° light scattering principle and conforms to EN ISO 7027. As light passes through the solution, part of it is absorbed and scattered and the other part is transmitted through the solution. This allows the turbidity/suspension of a water sample to be measured by measuring the intensity of the scattered light from particles in the water up to 4000 NTU.



Product type: innoSens 810T (FTU)

Measurement principle: 90° scattered light

Measurement range: 0-1000NTU/0-4000NTU

Resolution: 0.1NTU, 0.1mg/L

Accuracy: ±2% f.s.

Material: 316L housing, PVC, special optical glass

Dimensions: 42mm diameter, 120mm length

Threaded connection: 1" GAS

Cable: 10m as standard

Max. pressure: 4 bar

Operating temperature: 0-60°C

Protection class: IP68
