innoLev 200 split ultrasonic level difference meter uses state-of-the-art, non-contact ultrasonic measurement technology, can carry out a variety of liquid and solid level measurement. innoLev 200 can not only achieve double point level measurement, you can also measure the level difference.
Application:
Water Treatment, Chemical industry, Food Industry, Steel/Paper Mill
Features
Adopt a unique digital extraction technique to handle echoes
Simple and easier installation method
The controller is mounted separately from the sensor
Built-in temperature compensation sensor
RS485 Modbus Communication
Chinese / English menu
Technical Data
Model: innoLev 100/200
Measuring Medium: Liquid/Solid/Pipe
Input
Measuring sensor:PU06/12 Ultrasonic Sensor
Output
Analog Output 1: 4-20 mA isolated current represent any segment ;Load:Max.600Ω
Analog Output 2:4-20 mA isolated current segment of the measuring scale;Load:Max.600Ω
Relay 1&2 (Alarm):
Operation: ON/OFF
Selectable action : High / Low
Set Point: High/10.00mg/L; Low/4.00mg/L (adjustable)
Hysteresis: 0.10mg/L (adjustable)
Relay contacts: 5A/250VAC; 5A/30VDC
Interface
RS 485 Modbus RTU
Baud rate: 9600 bps
Data format: 8 bit
General Information
Power supply: 90 - 260V AC, 50/60Hz; 24VDC(Optional)
Temperature:
Operating temperature: 0 - 60℃
Storage temperature: -20 - 70℃
Humidity: Max. 90% rH at 40℃ (non-condensing)
LCD Screen: Big-size screen of crystal display, white back light
Language: Chinese / English
Passcode: Set mode: 0022 , Calibration mode:0011
Protection grade: IP65
Dimensions: 144 * 144 * 110mm
Installation: Wall/Pipe/Panel Mounting
Panel Cut Size: 138 * 138mm
Weight: 0.85Kg

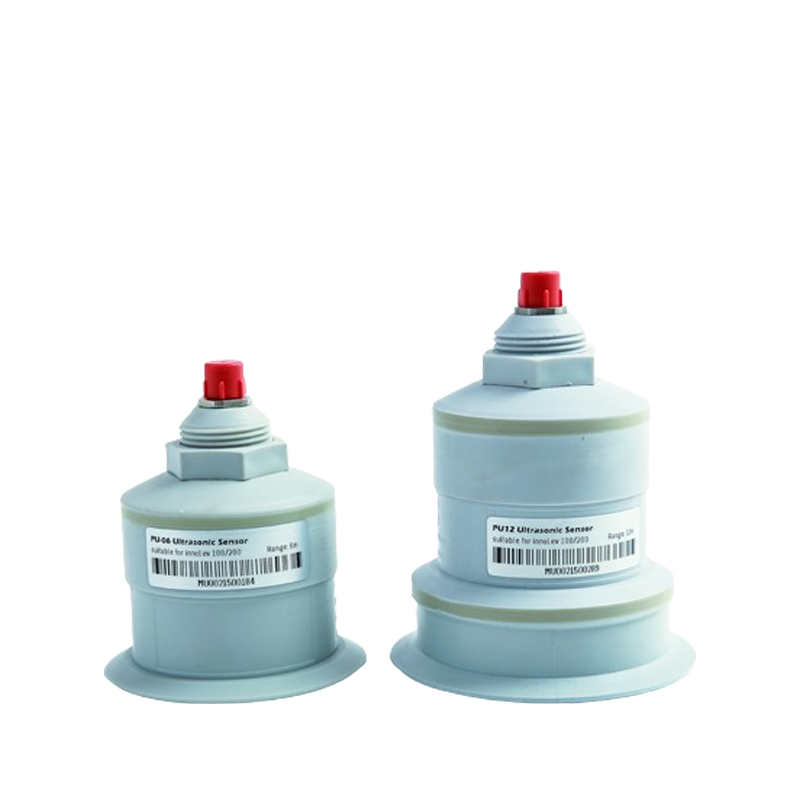

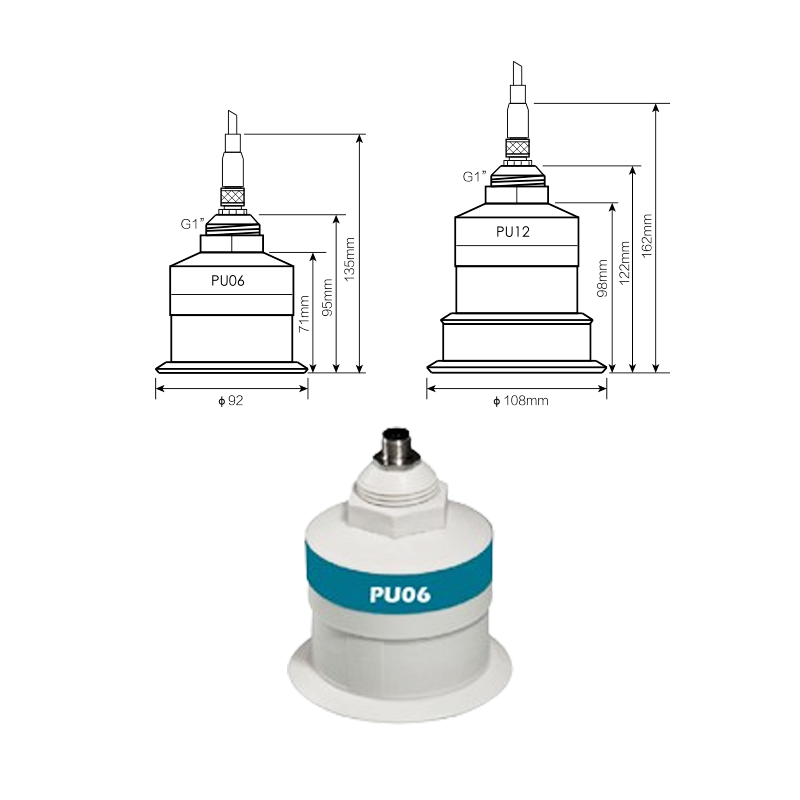

Ultrasonic Sensor
Model |
PU06 |
PU12 |
Range |
0.3-6 m |
0.5~12 m |
Accuracy |
0.2%f.s. |
0.2%f.s. |
Resolution |
1 mm |
1 mm |
Temperature range |
-25~75℃ |
-25~75℃ |
Max Pressure |
0.5 bar |
0.5 bar |
Material |
PP |
PP |
Cable |
10 m(separate) |
10 m(separate) |
Connection |
G1” |
G1” |
Protection Grade |
IP68 |
IP68 |
Order No. |
Model |
Descriptions |
34-0100-00 |
innoLev 100 |
Split Ultrasonic Level Meter,220VAC |
34-0200-00 |
innoLev 200 |
Split Ultrasonic Level Difference Meter,220VAC |
34-0100-06 |
PU06 |
PU06 ultrasonic sensor,0~6m,cable 10m |
34-0100-12 |
PU12 |
PU12 ultrasonic sensor,0~12m,cable 10m |
34-0000-10 |
PA-300S |
L-type stainless steel mounting bracket |
