The PACON 2500 analyzer continuously detects the online residual chlorine concentration in water and uses the authoritative and reliable DPD colorimetric method. By automatically adding buffer reagent, the sample is adjusted to a certain pH range and the DPD becomes purple with the concentration of residual chlorine. The color depth depends on the chlorine content of the water sample.
Measurement parameters:
● Chlorine
Application:
● Tap water
● Drinking water pipe network
● Disinfection process
● Reverse osmosis
● Cooling water
● Pool
Features
DPD colorimetric method, the measurement is more accurate and stable
- See American Standard Methods
- GB method, consistent with the laboratory method
Automatic diagnosis and automatic calibration
- Automated continuous self-diagnosis monitoring
- Built-in calibration curve, calibration is very simple
low reagent consumption, easy to replace
- Each reagent can measure 4000 times
- Reagent replacement is simple, simply pour the DPD powder into the indicator solution and dissolve it for use
Automatic and manual measurement mode
- Automatic measurement cycle optional: 300-3600s
- A key (down arrow) to quickly start a measurement
IP65 degree of protection
Indoor wall installation
RS485 output:
Standard Modbus RTU communication protocol. The baud rate is fixed at 9600.
Password protection to prevent unauthorized operations:
Password: 0022, English and Chinese menu
Measuring principle: DPD colorimetric method
Measuring range: 0 - 5.00mg / L (ppm) Residual chlorine
Resolution: 0.01mg / L
Accuracy: ± 1% f.s.
Measurement period: Can be set: 300 - 3600s (the instrument defaults to 300s)
Display: Multi-line LCD display (measured value, measurement mode and relay status)
Language: Chinese / English
Power: 90 - 260VAC, 50 / 60Hz
Analog Output: Isolated 4-20mA Output, Max.600?
Digital output: RS485 Modbus RTU
Alarm output: 2 sets of independent set Hi / Lo alarm points, with hysteresis setting, 5A / 250VAC
Operating conditions: Operating temperature: 0 - 50 ℃
Humidity: 10 - 95%, non-condensing
Influent flow: about 1L / min
Water pressure: about 1bar
Instrument Interface: Water Sample Import: φ10mm hose
Water samples export: φ10mm hose
Waste outlet: φ10mm hose
Protection class: IP65
Installation: Wall-mounted
Size: 450 x 350 x 200mm
Weight: ca. 5Kg
Residual chlorine spare parts package, including peristaltic pump tube, tube and so on
Order No.
Descriptions
33-2500-00
PACON 2500 Colorimetric residual chlorine analyzer, 90 - 260V AC
50-2500-00

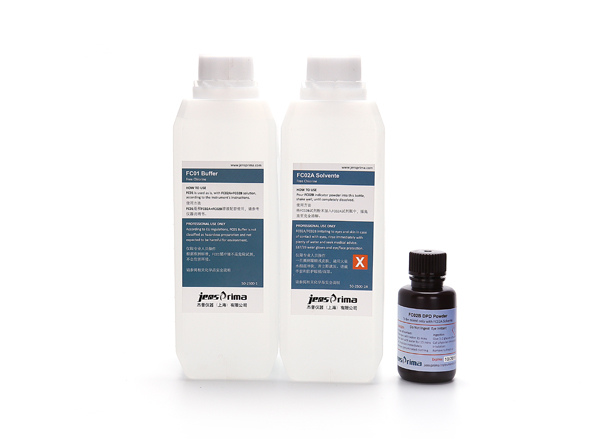

Residual chlorine reagent kit, about 30 days dosage
50-2500-10
