innoLev 100 ultrasonic level meter

InnoLev 100 split ultrasonic level meter utilizes state-of-the-art, non-contact ultrasonic measurement technology, can carry out a variety of liquid and solid level measurement. innoLev 100 includes microprocessor-based controllers and ultrasonic sensors (6m and 12m).

Application:

Water Treatment, Chemical industry, Food Industry, Steel/Paper Mill

Features

Adopt a unique digital extraction technique to handle echoes

Simple and easier installation method

The controller is mounted separately from the sensor

Built-in temperature compensation sensor

RS485 Modbus Communication

English / Chinese menu

Model: innoLev 100

Measuring Medium: Liquid/Solid/Pipe

Input

Measuring sensor:PU06/12 Ultrasonic Sensor

Output

Analog Output 1: 4-20 mA isolated current represent any segment ;Load:Max.600Ω

Analog Output 2:4-20 mA isolated current segment of the measuring scale;Load:Max.600Ω

Relay 1&2 (Alarm):

Operation: ON/OFF

Selectable action : High / Low

Set Point: High/10.00mg/L; Low/4.00mg/L (adjustable)

Hysteresis: 0.10mg/L (adjustable)

Relay contacts: 5A/250VAC; 5A/30VDC

Interface

RS 485 Modbus RTU

Baud rate: 9600 bps

Data format: 8 bit

General Information

Power supply: 90 - 260V AC, 50/60Hz; 24VDC(Optional)

Temperature:

Operating temperature: 0 - 60℃

Storage temperature: -20 - 70℃

Humidity: Max. 90% rH at 40℃ (non-condensing)

LCD Screen: Big-size screen of crystal display, white back light

Language: Chinese / English

Passcode: Set mode: 0022 , Calibration mode:0011

Protection grade: IP65

Dimensions: 144 * 144 * 110mm

Installation: Wall/Pipe/Panel Mounting

Panel Cut Size: 138 * 138mm

Weight: 0.85Kg

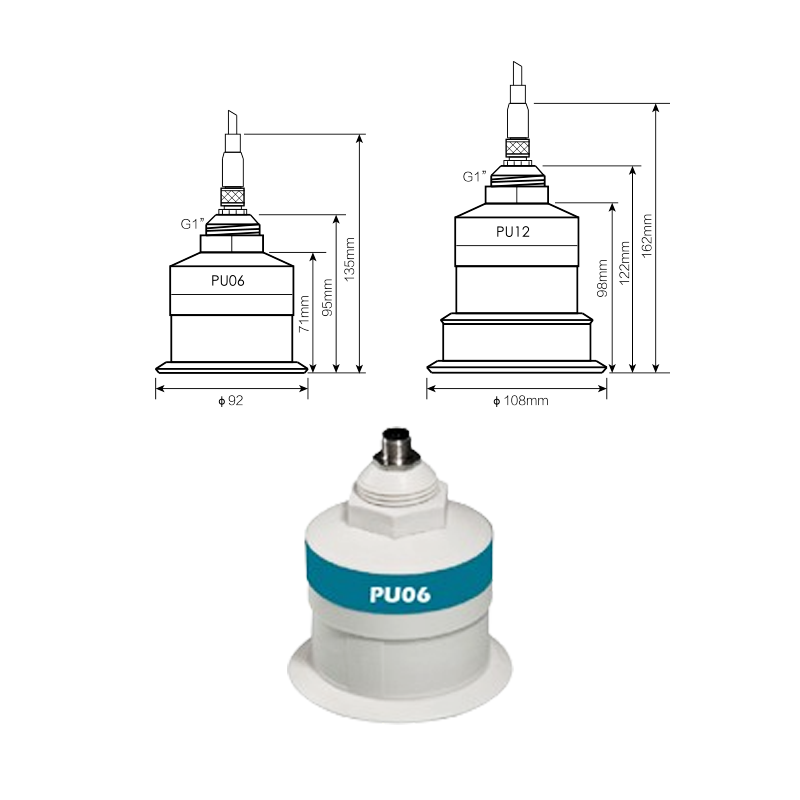

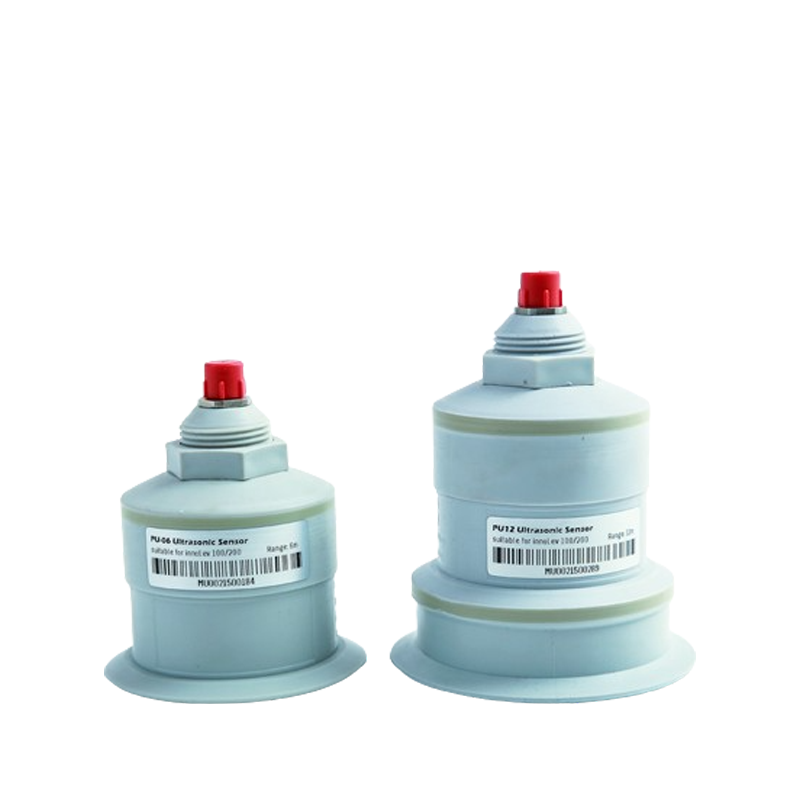

Ultrasonic Sensor
